Détails sur le produit:
|

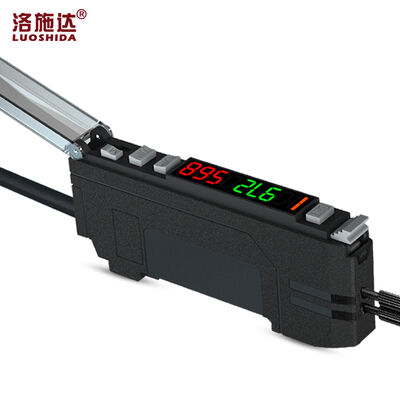

| Nom du produit: | Amplificateur à fibre optique | Temps de réponse: | Mode MARK 50 microsecondes, mode C 130 microsecondes |
|---|---|---|---|
| Condition: | 100% nouveau 100% original | Température de travail: | -10+55°C pas de gel |
| Sélection de la sortie: | Lumière allumée/foncée (sélection de commutateur) | Lumière ambiante: | Lampe à incandescence : Max. 20 000 lux, lumière du jour : max. 30 000 lux |
| Mettre en évidence: | RGB fiber optic amplifier,NPN/PNP fiber optic detector,color-sensitive fiber sensor amplifier |
||
| Detection distance | Flush 1mm/Non-flush 2mm |
| Response time | MARK mode 50 microseconds,C mode 130 microseconds |
| Working temperature | -10+55°C no freezing |
| Output selection | LIGHT-ON/DARK-ON(Switch Selection) |
| Display Indicator | Operation indicator: red LED, dual digital monitor: double 7-digit display, the threshold(4-digit green LED indicator) and the current value (4-digit red LED indicator) are lit together. Current value range :0 to 9999 |
| Detection Method | Light intensity detection MAKR and color automatic matching C and color + brightness value detection Cl |
| Delay Function | Open delay timer/Open delay timer/Single timer/Open delay timer, optional. The meter display can be selected in duration:1ms to 9999ms |
| Control output | NPN/PNP open collector 24V, Max100mA(only main parts) Max 20mA(Residual voltage :1V when expansion parts are connected |
| Power supply | Between 12 and 24VDC+10%, floating rate (P-P):Maximum 10% grade 2 |
| Ambient brightness | Incandescent lamp: Max. 20,000lux, daylight:Max. 30,000lux |
